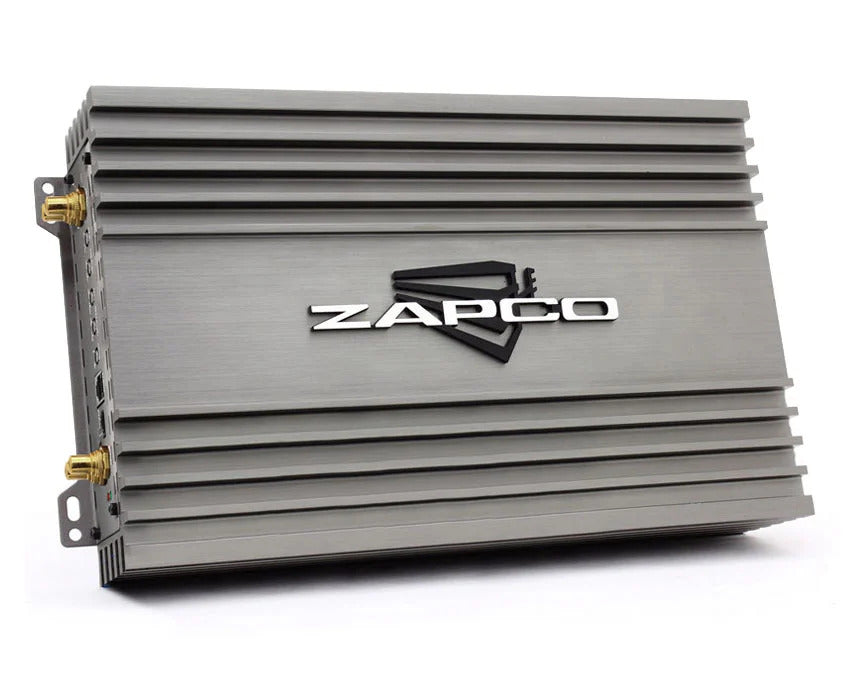

Zapco Competition Mono Sound Q Class D Bass Amplifier

Features and Functions

• Mono Class D Linkable, bass amplifier,

• Stable into 1 Ohm (2 Ohm w/2 amps Linked/Strapped)

• PWM MOSFET power supply

• 24 dB Variable low pass (LPF) crossover

• 12 dB Variable bass boost equalization

• 0 – 180 degree variable phase shift

• 24 dB Variable subsonic filter

• Selectable master and slave operation for Linked (strapped) amplifier operation

Specifications

• Power @ 4Ω: 450 watts

• Power @ 2Ω: 700 watts

• Power @ 1Ω: 1050 watts

• Linked @ 2Ω: 1800 Watts

• THD @ Rated Power  < 0.05%

• Signal to Noise Ratio > 90dB

• Damping factor: > 350

• Efficiency: 86%

• Input Sensitivity .2v to 8v

• Dimensions in mm: 190(W) x 62(H) x 275(L) Overall: 190(W) x 62(H) x 305(L)
